Product details

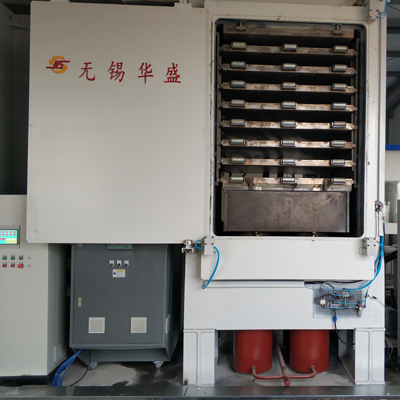

HS series lamination system is composed of many subsystems which are placed freely in space, including oil hydraulic power system, heat medium oil temperature control system, heating, cooling system and electronic control unit. The production line can be laid out freely and reasonably according to the site needs. Optional accessories such as feeding truck, automatic feeding, unloading device and temporary storage system can effectively cooperate with the rack transmission system to achieve automatic operation.
The heating system can meet different temperature requirements by using different labels of heat conducting oil. Computer aided design and Simulation of the heating plate structure combined with a highly sensitive proportional integral temperature control system can make the system more accurate temperature control and improve the temperature uniformity in different areas of the hot plate.
Advanced visual operating system can store date-based operation. Production and related information can be directly stored in the system and effectively realize the hierarchical management of programs integrated in high-end programmable logic controller (PLC), which makes system maintenance more simple and efficient.

  Total pressure

  3500KN

  Diameter of the main oil cylinder

  φ990mm

  Number of open

  6 pcs of Open

  Machine Specification

  Three Hots and One Cold

  Hot platen size

  1068mm x 1650mm x 60(T)mm

  Effective area

  1000mm x 1600mm

  Heating mode

  Electric heating of heat medium oil (adjustable temperature over 400℃)

  Maximum operating temperature

  400 ℃

  Closing speed

  ~10 mm/s

  High Pressure Velocity

  ~0.7 mm/s

  Temperature Accuracy

  ±1.5℃

  Pressure Accuracy

  +/- 1 bar

  Vacuum system

  ≤ 10 mbar
